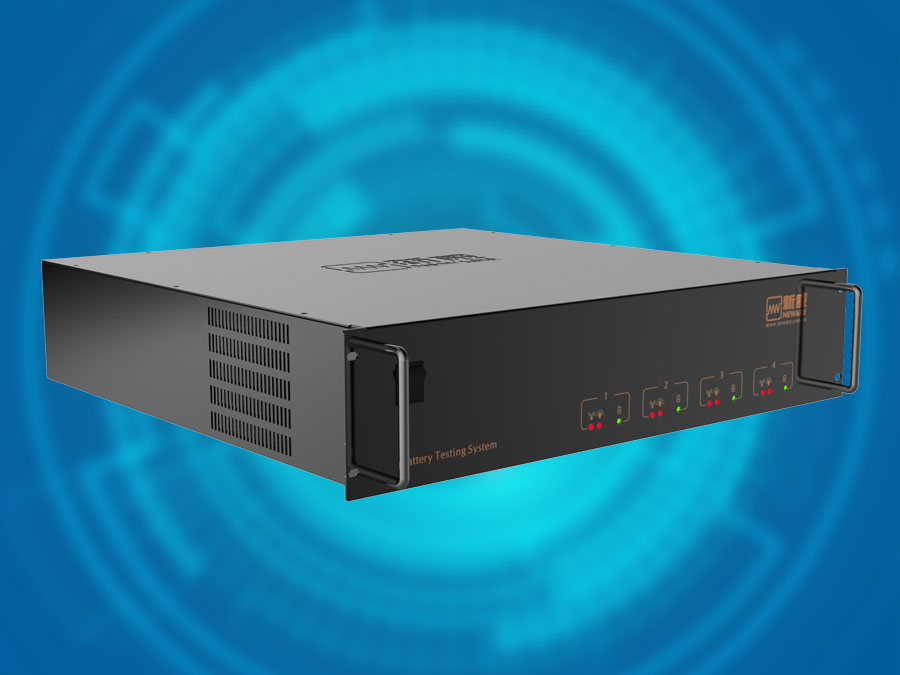

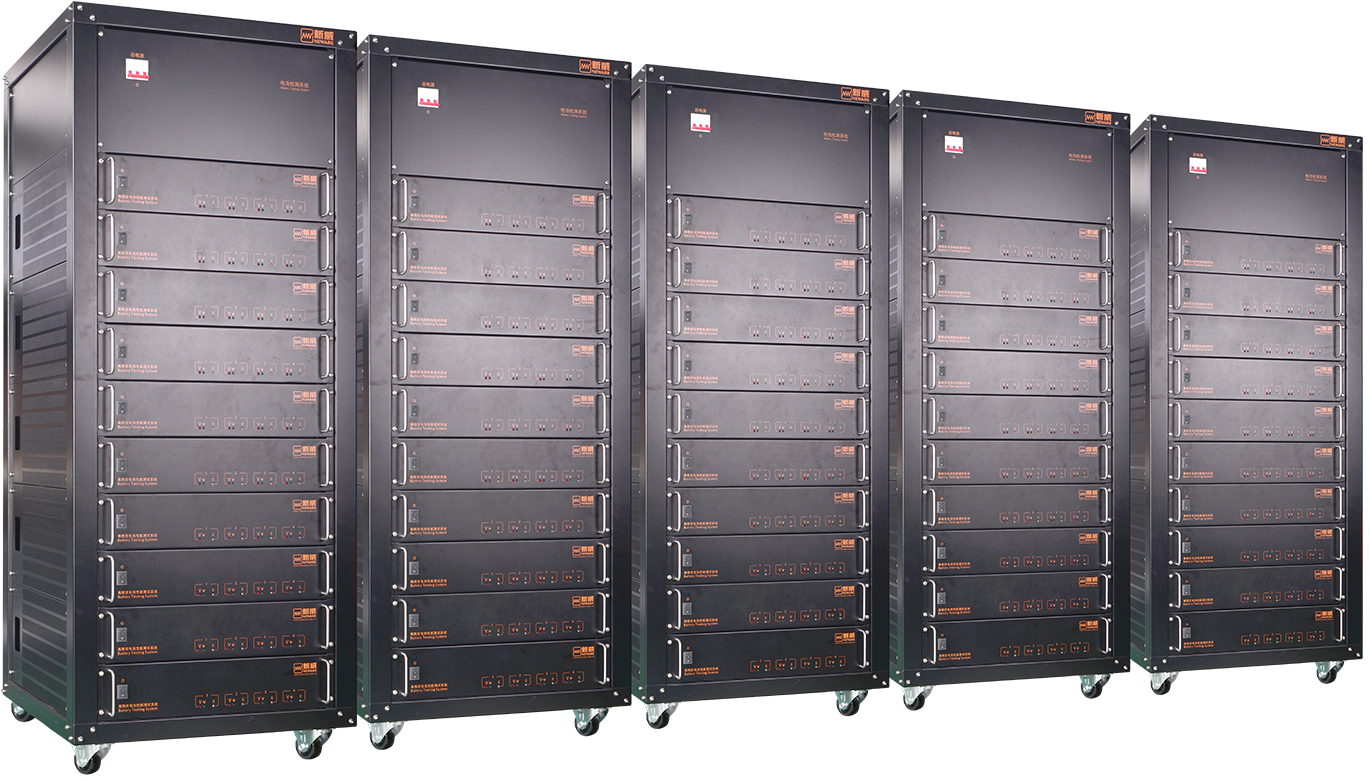

This is BTS-9004-5V5A Technology Specification
|
Description |
Specification |
|
|
AC Input |
AC 220V +10% / -20%, 50Hz;(AC 110V, 60Hz can be customized) |
|
|
Resolution |
AD：16bit；DA：16bit |
|
|
Impedance input |
≥ 500MΩ |
|
|
Input power |
250 w |
|
|
Channel Feature |
Independent pairs of closed loops for constant current source and constant voltage source |
|
|
Channel control mode |
Independent control |
|
|
Voltage |
Measuring Range |
Charge：0.7V~5V；Discharge：0.7V~5V |
|
Discharge Min Voltage |
0.7 V（Within 0.5 meter） |
|
|
Accuracy |
± 0.02% of FS |
|
|
Stability |
±0.005% of FS |
|
|
Current |
Measuring Range |
Range1: 0.1uA---150uA |
|
Range2：140uA---5mA |
||
|
Range3：4.5mA---150mA |
||
|
Range4: 140mA---5A |
||
|
Accuracy |
± 0.02% of FS |
|
|
Range1: ± 30nA |
||
|
Range2：± 1uA |
||
|
Range3：± 30uA |
||
|
Range4: ± 1mA |
||
|
Stability |
±0.005% of FS |
|
|
Power |
Max Output Power Per Channel |
25W |
|
Stability |
± 0.01% of FS |
|
|
Time |
Rise Time |
<= 100μS (10% to 90% or 90% to 10%); |
|
Step Time Range |
>=10ms |
|
|
Data acquisition |
Intervals |
Time△t：>=1ms |
|
Voltage△U：>= 1mV |
||
|
Current△I：>= 100nA |
||
|
Frequency |
1000Hz |
|
|
Charge |
Charge Mode |
CC, CCCV, CV, CP, CR |
|
End Conditions |
Voltage, Current, △t, Capacity, Energy, Power |
|
|
Discharge |
Discharge Mode |
CC, CP, CR, Pulse |
|
|
End Conditions |
Voltage, Current, △t, Capacity |
|
Pulse |
Charge |
CC, CP |
|
Discharge |
CC, CP |
|
|
Min. pulse width |
400μs |
|
|
Pulses counts |
Up to 16 changes in each pulse |
|
|
End conditions |
Voltage, △t |
|
|
DCIR |
Can be calculated by software |
|
|
Cycle |
Max cycles |
1~65535 |
|
Max steps in each cycle |
255 |
|
|
Max cycle nest |
4 |
|
|
Protection |
Safety protection |
l Power-off data protection |
|
l Off-line operation mode |
||
|
l User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.; |
||
|
Data acquisition method |
Kelvin connection |
|
|
Database |
MySQL |
|
|
Communication |
TCP/IP(100M Ethernet) |
|
|
Data export |
EXCEL2003,2010、TXT |
|
|
Communication Interface |
Ethernet port |
|
|
Channels |
4 |
|
|
Dimensions |
W*D*H：443*615*125（mm） |
|
|
Clamps |
204 Air-plug, Polymer or alligator available |
|
|
Operating system |
Windows 7/ Windows 10 |
|
Operation and storage environment requirement
|
Description |
Specification |
|
Operation environment temperature |
0℃~40℃ (When the temperature is 25±10℃, the accuracy error caused by temperature change is less than50ppm /℃) |
|
Storage environment temperature |
0~60℃ |
|
Operation environment humidity |
≤70% RH(no moisture condensation) |
|
Storage environment humidity |
≤80% RH(no moisture condensation) |
 |
 |
