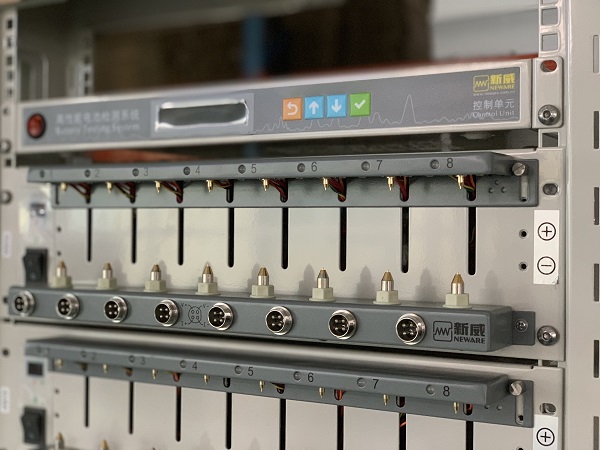

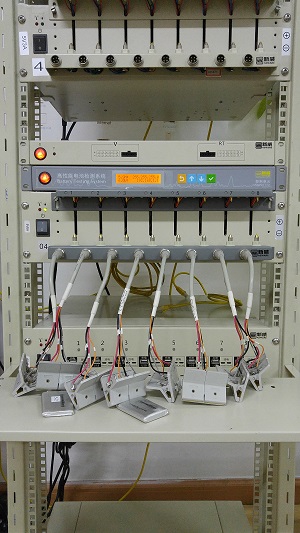

BTS-5V6A Battery Testing System For cylinder/pouch cell

Model: BTS--4008-5V6A

Description

Product Specification

AC Input

AC 220V±10% 50Hz (AC110V,60Hz can be customized)

Power

425W

Resolution

AD: 16bit; DA: 16bit

Input Impedance

≥1MΩ

Voltage

Measuring Range

Charge: 25mV~5V

Discharge: 25mV~5V

Discharge  Min Voltage

1.2V

Accuracy

± 0.05% of  FS

Stability

± 0.05% of  FS

Current

Range

Range1: 0.5mA~0.1A  Range2: 0.1A~3A Range3: 3A~6A

Accuracy

± 0.05% of  FS

Stability

± 0.05% of  FS

Constant Voltage stop current

Range1: 0.2mA; Range2: 6mA; Range3: 12mA

Power

Output Power Per Channel

30W

Stability

± 0.1% of  FS

Time

Rise Time

1ms  (0~Full Range)

Step Time

≤ (365*24)  hour/step

Time Format 00：00：00：000 (h:min:s:ms)

Data Acquisition

Intervals

Time interval  Δt:（100ms~60000s）

Voltage interval ΔU: （10mV~5V）

Current interval ΔI: (Range1: 0.2mA; Range2: 6mA; Range3: 12mA)

Frequency

10Hz

Charge

Mode of Operation

CCC, CVC, CC & CVC, CPC

End Conditions

Voltage, Current, Test Time, Capacity

Discharge

Mode of Operation

CCD, CPD, CRD

End Conditions

Voltage, Current, Test Time, Capacity

Pulse mode

Charge

CR mode、CP mode

Discharge

CC mode、CP mode

Min pulse width

500ms

Automated Switch

Automated switch from charge to discharge for each pulse

End Condition

Voltage、Relative Time

DCIR

Support for the calculation of the point of the DCIR

Cycle

Cycles

65535

Steps

254

 Nested Function

Max three levels of loops

Protective Function

Software

● Power-off data protection

● Off-line Operating

● User-defined safety(upper and lower)tolerance of current, voltage and delay time

Channel Features

Independent pairs of closed loop for constant current source and constant voltage source

Channels

Independent control

Detection and Sampling

4-wire Connecting

Noise Density

<85dB

Data Management

MYSQL Database

Communication Means

TCP/IP Protocol

Export Formats

EXCEL2003/2010, TXT, Graph

Communication Interface

Ethernet Port

Number of Channels Per Cabinet

8

Operating  Environment

Description

Product Specification

Operating Temperature

0℃~40℃

Storage Temperature

-10℃~50℃

Operating Humidity

≤70% RH

Storage Humidity

≤80% RH

Description

Product Specification

Battery Holder

Universal Holder

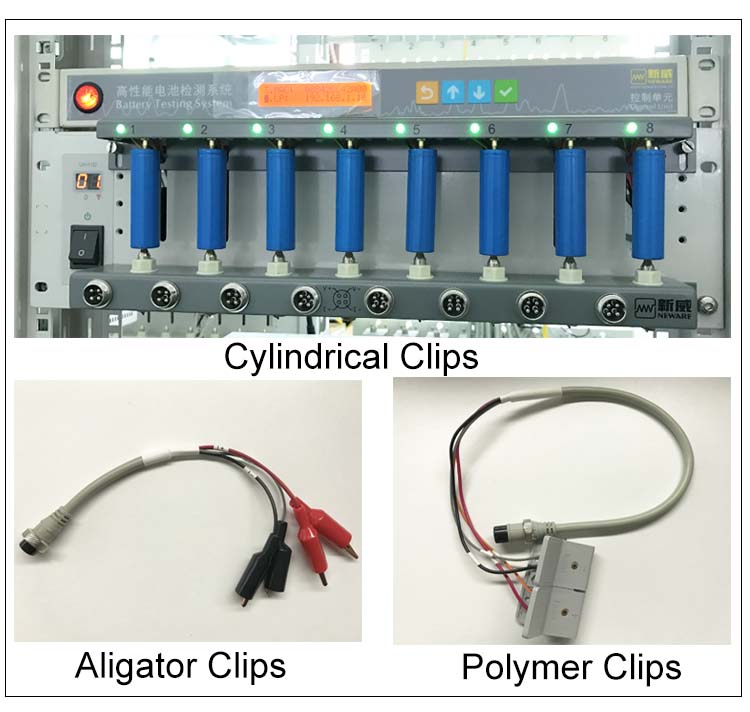

Holder  Picture

Picture for reference,  please confirm the actual product

Dimensions （W*D*H）(mm)

3U（19），480*330*130
